Name: RoadCenterline

Display Field: st_name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

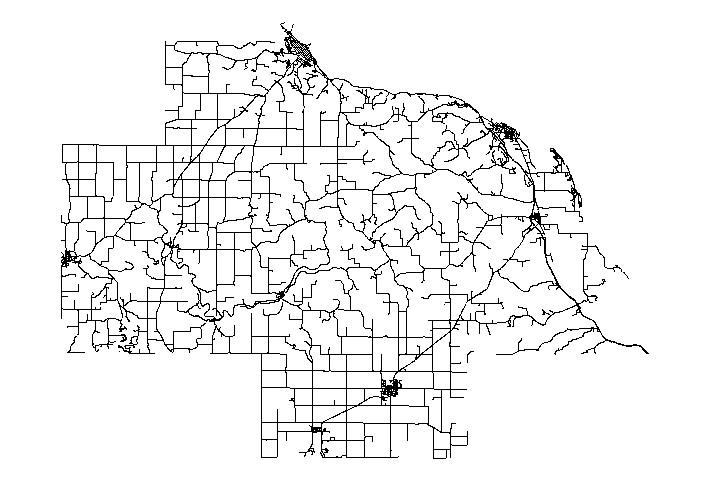

Description: This layer contains lines showing all public and many private roads in Wabasha County, Minnesota and the part of Lake City that extends into Goodhue County.

Service Item Id: 1f17af37813a4f85861afb0bbdcbdddd

Copyright Text: Wabasha County GIS

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 535792.3200406404
YMin: 4884065.355346711
XMax: 590375.3609347222
YMax: 4924439.024638049
Spatial Reference: 26915  (26915)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [89, 145, 36, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID )
• roadseg_id ( type: esriFieldTypeString, alias: Road Segment Unique Identifier, length: 36 )
• route_id ( type: esriFieldTypeString, alias: Route ID, length: 18 )
• route_sys ( type: esriFieldTypeString, alias: Route System, length: 2 , Coded Values: [02: US Highway] , [03: MN Highway] , [04: County-State Aid Highway] , ...21 more... )
• route_dir ( type: esriFieldTypeString, alias: Route Direction, length: 1 , Coded Values: [I: Route goes in direction of increasing miles] , [D: Route goes in direction of decreasingmiles] )
• loc_state ( type: esriFieldTypeString, alias: Local to State, length: 10 , Coded Values: [Same: Same] , [Reverse: Reverse] )
• prime_stat ( type: esriFieldTypeString, alias: Primary Status, length: 10 , Coded Values: [Primary: Primary] , [Secondary: Secondary] )
• st_pre_mod ( type: esriFieldTypeString, alias: Street Name Pre Modifier, length: 15 )
• st_pre_dir ( type: esriFieldTypeString, alias: Street Name Pre Directional, length: 9 , Coded Values: [North: North] , [South: South] , [East: East] , ...5 more... )
• st_pre_typ ( type: esriFieldTypeString, alias: Street Name Pre Type, length: 35 , Coded Values: [Avenue: Avenue] , [County Highway: County Highway] , [County Road: County Road] , ...5 more... )
• st_pre_sep ( type: esriFieldTypeString, alias: Street Name Pre Separator, length: 20 , Coded Values: [at: at] , [in the: in the] , [of: of] , ...4 more... )
• st_name ( type: esriFieldTypeString, alias: Street Name, length: 60 )
• st_pos_typ ( type: esriFieldTypeString, alias: Street Name Post Type, length: 15 , Coded Values: [Alley: Alley] , [Annex: Annex] , [Avenue: Avenue] , ...93 more... )
• st_pos_dir ( type: esriFieldTypeString, alias: Street Name Post Directional, length: 9 , Coded Values: [North: North] , [South: South] , [East: East] , ...5 more... )
• st_pos_mod ( type: esriFieldTypeString, alias: Street Name Post Modifier, length: 15 )
• st_concat ( type: esriFieldTypeString, alias: Street Name Full, length: 150 )
• st_name_a1 ( type: esriFieldTypeString, alias: Alternate Street Name 1, length: 150 )
• a1_msag_v ( type: esriFieldTypeString, alias: Alt 1 Legitimate MSAG Value, length: 7 , Coded Values: [Left: Left] , [Right: Right] , [Both: Both] , ...1 more... )
• st_name_a2 ( type: esriFieldTypeString, alias: Alternate Street Name 2, length: 150 )
• a2_msag_v ( type: esriFieldTypeString, alias: Alt 2 Legitimate MSAG Value, length: 7 , Coded Values: [Left: Left] , [Right: Right] , [Both: Both] , ...1 more... )
• st_name_a3 ( type: esriFieldTypeString, alias: Alternate Street Name 3, length: 150 )
• a3_msag_v ( type: esriFieldTypeString, alias: Alt 3 Legitimate MSAG Value, length: 7 , Coded Values: [Left: Left] , [Right: Right] , [Both: Both] , ...1 more... )
• add_fr_l ( type: esriFieldTypeInteger, alias: Left From Address )
• add_to_l ( type: esriFieldTypeInteger, alias: Left To Address )
• add_fr_r ( type: esriFieldTypeInteger, alias: Right From Address )
• add_to_r ( type: esriFieldTypeInteger, alias: Right To Address )
• parity_l ( type: esriFieldTypeString, alias: Left Parity, length: 4 , Coded Values: [Odd: Odd] , [Even: Even] , [Both: Both] , ...1 more... )
• parity_r ( type: esriFieldTypeString, alias: Right Parity, length: 4 , Coded Values: [Odd: Odd] , [Even: Even] , [Both: Both] , ...1 more... )
• zip_l ( type: esriFieldTypeString, alias: Left Zip Code, length: 5 )
• zip_r ( type: esriFieldTypeString, alias: Right Zip Code, length: 5 )
• ctu_name_l ( type: esriFieldTypeString, alias: Left CTU Name, length: 100 , Coded Values: [Bellechester: Bellechester] , [Belvidere Township: Belvidere Township] , [Chester Township: Chester Township] , ...37 more... )
• ctu_name_r ( type: esriFieldTypeString, alias: Right CTU Name, length: 100 , Coded Values: [Bellechester: Bellechester] , [Belvidere Township: Belvidere Township] , [Chester Township: Chester Township] , ...37 more... )
• ctu_id_l ( type: esriFieldTypeString, alias: Left CTU Code, length: 25 , Coded Values: [00663563: Belvidere Township] , [00663793: Chester Township] , [00664064: Elgin Township] , ...36 more... )
• ctu_id_r ( type: esriFieldTypeString, alias: Right CTU Code, length: 25 , Coded Values: [00663563: Belvidere Township] , [00663793: Chester Township] , [00664064: Elgin Township] , ...36 more... )
• postcomm_l ( type: esriFieldTypeString, alias: Left Postal Community Name, length: 40 )
• postcomm_r ( type: esriFieldTypeString, alias: Right Postal Community Name, length: 40 )
• co_code_l ( type: esriFieldTypeString, alias: Left County Code, length: 5 , Coded Values: [OOJ: Out of Jurisdiction] , [27049: Goodhue] , [27109: Olmsted] , ...4 more... )
• co_code_r ( type: esriFieldTypeString, alias: Right County Code, length: 5 , Coded Values: [OOJ: Out of Jurisdiction] , [27049: Goodhue] , [27109: Olmsted] , ...4 more... )
• co_name_l ( type: esriFieldTypeString, alias: Left County Name, length: 40 , Coded Values: [Buffalo: Buffalo] , [Goodhue: Goodhue] , [Olmsted: Olmsted] , ...4 more... )
• co_name_r ( type: esriFieldTypeString, alias: Right County Name, length: 40 , Coded Values: [Buffalo: Buffalo] , [Goodhue: Goodhue] , [Olmsted: Olmsted] , ...4 more... )
• state_l ( type: esriFieldTypeString, alias: Left State Code, length: 2 , Coded Values: [MN: Minnesota] , [WI: Wisconsin] )
• state_r ( type: esriFieldTypeString, alias: Right State Code, length: 2 , Coded Values: [MN: Minnesota] , [WI: Wisconsin] )
• elev_from ( type: esriFieldTypeSmallInteger, alias: Elevation From , Coded Values: [5: 5] , [4: 4] , [3: 3] , ...8 more... )
• elev_to ( type: esriFieldTypeSmallInteger, alias: Elevation To , Coded Values: [5: 5] , [4: 4] , [3: 3] , ...8 more... )
• oneway ( type: esriFieldTypeString, alias: One Way, length: 1 , Coded Values: [T: To Point Against Arc] , [F: From Point With Arc] , [B: Both] , ...1 more... )
• speed_imp ( type: esriFieldTypeSmallInteger, alias: Impedance Speed )
• emerg_acc ( type: esriFieldTypeString, alias: Emergency Access, length: 10 , Coded Values: [Yes: Yes] , [No: No] , [Unknown: Unknown] )
• routespeed ( type: esriFieldTypeSmallInteger, alias: Routing Speed )
• route_num ( type: esriFieldTypeString, alias: Route Number, length: 5 )
• gis911poc ( type: esriFieldTypeString, alias: 911 GIS Point-of-Contact, length: 75 , Coded Values: [Wabasha: Wabasha] )
• esn_l ( type: esriFieldTypeString, alias: Left Emergency Service Number, length: 5 , Coded Values: [3003: 3003] , [3006: 3006] , [3008: 3008] , ...456 more... )
• esn_r ( type: esriFieldTypeString, alias: Right Emergency Service Number, length: 5 , Coded Values: [3003: 3003] , [3006: 3006] , [3008: 3008] , ...456 more... )
• psap_l ( type: esriFieldTypeString, alias: Left PSAP Code, length: 5 , Coded Values: [GOOD: Goodhue County PSAP] , [OOJ: Out of Jurisdiction] , [R/OLM: Rochester/Olmsted PSAP] , ...2 more... )
• psap_r ( type: esriFieldTypeString, alias: Right PSAP Code, length: 5 , Coded Values: [GOOD: Goodhue County PSAP] , [OOJ: Out of Jurisdiction] , [R/OLM: Rochester/Olmsted PSAP] , ...2 more... )
• msag_c_l ( type: esriFieldTypeString, alias: Left MSAG Community Name, length: 30 , Coded Values: [Altura: Altura] , [Bellechester: Bellechester] , [Elgin: Elgin] , ...15 more... )
• msag_c_r ( type: esriFieldTypeString, alias: Right MSAG Community Name, length: 30 , Coded Values: [Altura: Altura] , [Bellechester: Bellechester] , [Elgin: Elgin] , ...15 more... )
• valid_l ( type: esriFieldTypeString, alias: Validation Left, length: 10 , Coded Values: [Yes: Yes] , [No: No] , [Unknown: Unknown] )
• valid_r ( type: esriFieldTypeString, alias: Validation Right, length: 10 , Coded Values: [Yes: Yes] , [No: No] , [Unknown: Unknown] )
• verror_911 ( type: esriFieldTypeString, alias: 911 Validation Error, length: 10 , Coded Values: [Yes: Yes] , [No: No] , [Unknown: Unknown] )
• status ( type: esriFieldTypeString, alias: Lifecycle Status, length: 20 , Coded Values: [Active: Active] , [Retired: Retired] , [Out of Service: Out of Service] , ...1 more... )
• eff_date ( type: esriFieldTypeDate, alias: Effective Date, length: 8 )
• ret_date ( type: esriFieldTypeDate, alias: Retired Date, length: 8 )
• edit_org ( type: esriFieldTypeString, alias: Editing Organization, length: 40 )
• edit_date ( type: esriFieldTypeDate, alias: Edit Date, length: 8 )
• funcls_fed ( type: esriFieldTypeString, alias: Functional Class - Federal, length: 1 , Coded Values: [1: Principal Arterial – Interstate] , [2: Principal Arterial – Other Freeways and Expressways (OFE)] , [3: Principal Arterial – Other (OPA)] , ...5 more... )
• funcls_met ( type: esriFieldTypeString, alias: Functional Class - Metro, length: 3 , Coded Values: [100: Principal Arterial] , [211: Minor Arterial, A-Minor Augmentor] , [212: Minor Arterial, A-Minor Reliever] , ...7 more... )
• surf_type ( type: esriFieldTypeString, alias: Surface Type, length: 32 , Coded Values: [Aggregate: Aggregate] , [Bituminous: Bituminous] , [Brick: Brick] , ...8 more... )
• num_lanes ( type: esriFieldTypeSmallInteger, alias: Number of Lanes )
• comments ( type: esriFieldTypeString, alias: Comments, length: 254 )
• globalid ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• shape ( type: esriFieldTypeGeometry, alias: Shape )
• st_length(shape) ( type: esriFieldTypeDouble, alias: st_length(shape) )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
